我司主要從事電氣工程及自動化系統的開發、設計、安裝、調試及售后服務工作，是專業的系統集成商，幫助企業以較低的成本進行工業4.0升級。

項目描述Description:

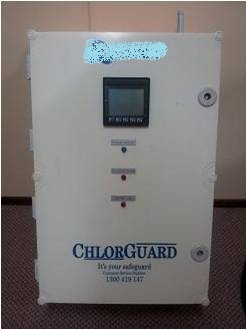

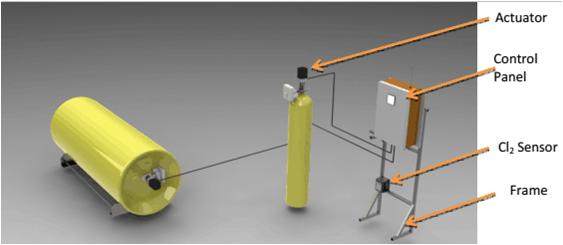

我司為澳洲的知名企業設計生產了氯氣檢測控制箱。

Sains has designed and been producing control cabinets on Chlorguard project for 4 years.



項目名稱：安哥拉重油控制柜

Project name: PLC Control System For Heavy Oil Generator

項目地點：安哥拉

Location: Angola

項目描述Description:

我司為安哥拉重油發電控制系統。

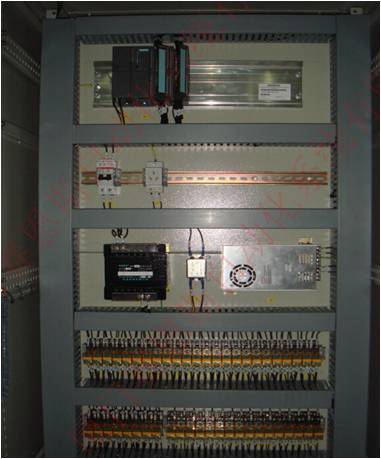

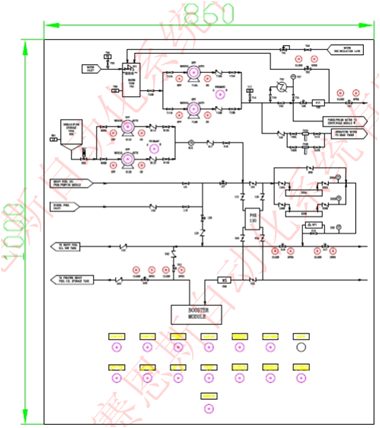

Sains has produced a PLC control system for the generator. By using Modbus-RTU communication protocol, data can be collected by the PLC and the system can automatically control the heavy oil generator, keeping the ideal operation condition for the machine.



項目簡介Project Overview

項目名稱：生產線控制系統Project name: Production Line Control System

項目地點：長泰

Location: Chang Tai

Owner: TOTO

項目描述Description:

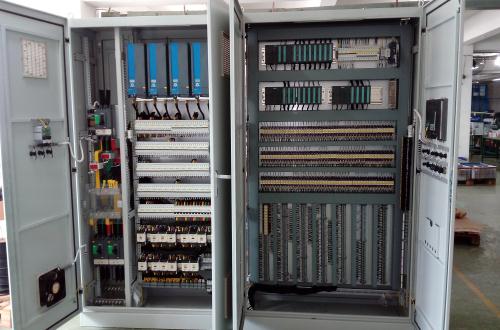

我司為TOTO的生產線采購并安裝了64臺控制柜。

Sains done procurement, assembling and installation of 64 control cabinets for the production line.





項目簡介Project Overview

項目名稱：冷凍站控制系統    Project name: Refrigerating Station Control System

項目地址：南京

Location: Nan Jing

Owner:Coca cola

項目描述Description:

為南京可口可樂定制冷凍站控制系統。

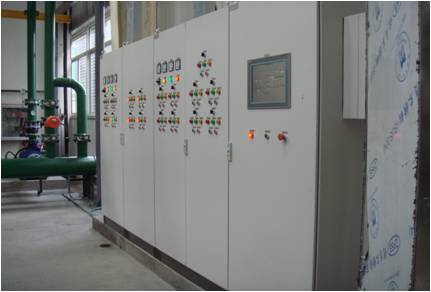

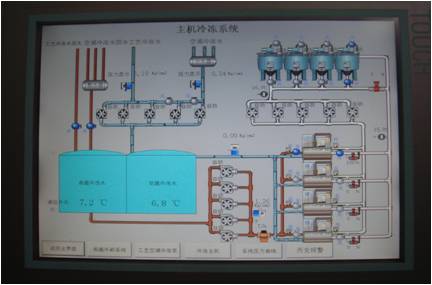

Sains designed and produced the control system. The system consists of a SIEMENS S7-300 PLC, a SIEMENS MP377 touching screen, Danfoss converters and Schneider low voltage electrical devices to control 2 ZUW400A5 water chillers, 3 37kw freezing pumps, 3 55kw processing pumps, one 15kw air conditioning pumps, 3 22kw high temperature tower pumps, and 2 groups of 11kw cooling tower.





項目簡介

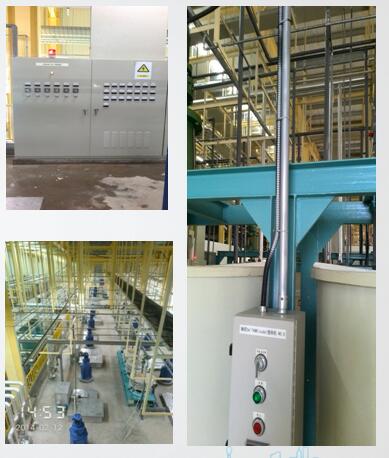

項目名稱：氨氣回收控制系統

項目描述

我司參與了藍恒達廠內的氨氣回收控制系統的柜體安裝、調試
